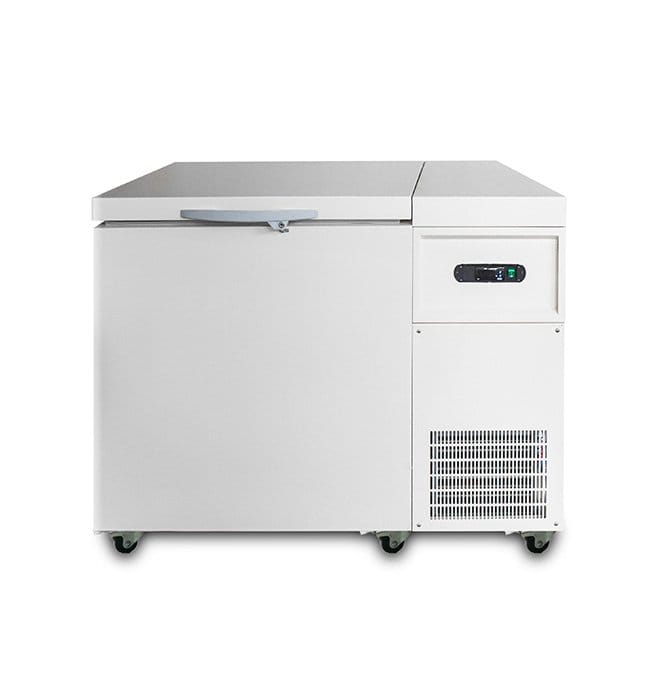

-86°C ULT Freezer
Product Application
-86℃ ULT Freezer is specially designed for long term storage of various biological products, such as germs, virus, erythrocytes, leukocytes, cutis. It can be installed in institutions including blood banks, hospitals, epidemic prevention services, research institutes and laboratories for electronic and chemical plants, biological engineering institutes and marine fishery companies.
Temperature Control

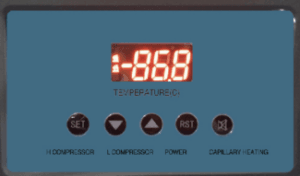

Microprocessor control, Large LED display inner temperature clearly, and with easy view;
The inner temperature can be adjustable at the range of -40℃~-86℃, with an increment of 0.1℃;
Lock and password for protection to prevent arbitrary adjustment of operating parameters

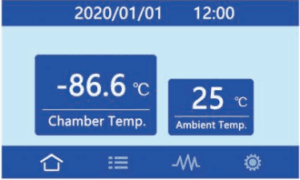

Optional 7″color LCD touch screen display system.
Safety Control
Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;
Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;
Protection function: power-on delay, time between stops.
Refrigeration System
Optimized cascade refrigeration technology, SECOP compressor to reach a high refrigeration effect;
Specially designed Heat Exchanger, high efficient heat transfer,energy conservation;
V.I.P insulation panels to ensure the insulation performance;
CFC-Free overall polyurethane foaming insulation;
High efficient hydrocarbon refrigerant.
Ergonomic Design
Safety door lock, preventing unauthorized access;
Wide voltage design from 192V to 242V;
Double inner doors to reduce the loss of cold air after opening the door;
Suitable for 2″ and 3″ international standard freezer boxes;Pressure-balanced port design, easy to open the door;
Heavy type caster and locking with adjustable screw, easy to move and fix;
Ultra-simple condenser filter design, convenient for maintenance and washing.
| Model | NE-150W118 | |
| Technical Data | Cabinet Type | Chest |
| Climate Class | N | |
| Cooling Type | Direct cooling | |
| Defrost Mode | Manual | |
| Refrigerant | CFC-Free | |
| Performance | Cooling performance (℃) | -150 |
| Temperature Range (℃) | -100～-150 | |
| Control | Controller | Microprocessor |
| Display | LED | |
| Material | Interior | Galvanized steel powder coating |
| Exterior | Stainless Steel | |
| Electrical Data | Power Supply(V/Hz) | 220/50 |
| Power(W) | 2300 | |
| Electrical Current(A) | 11 | |
| Dimensions | Capacity(L) | 118 |
| Net/Gross Weight(approx) | 110/130 (kg) | |
| Interior Dimensions(W*D*H) | 500×400×560 (mm) | |
| Exterior Dimensions(W*D*H) | 1270×780×965 (mm) | |
| Packing Dimensions(W*D*H) | 1320×920×1075 (mm) | |
| Container load (20'/40'/40'H) | 16/32/32 | |
| Functions | High/Low Temperature | Y |
| Sensor Error | Y | |
| Lockage | Y | |
| Accessories | Caster | Y |
| Racks & Boxes | Optional | |
