50-0113
Description

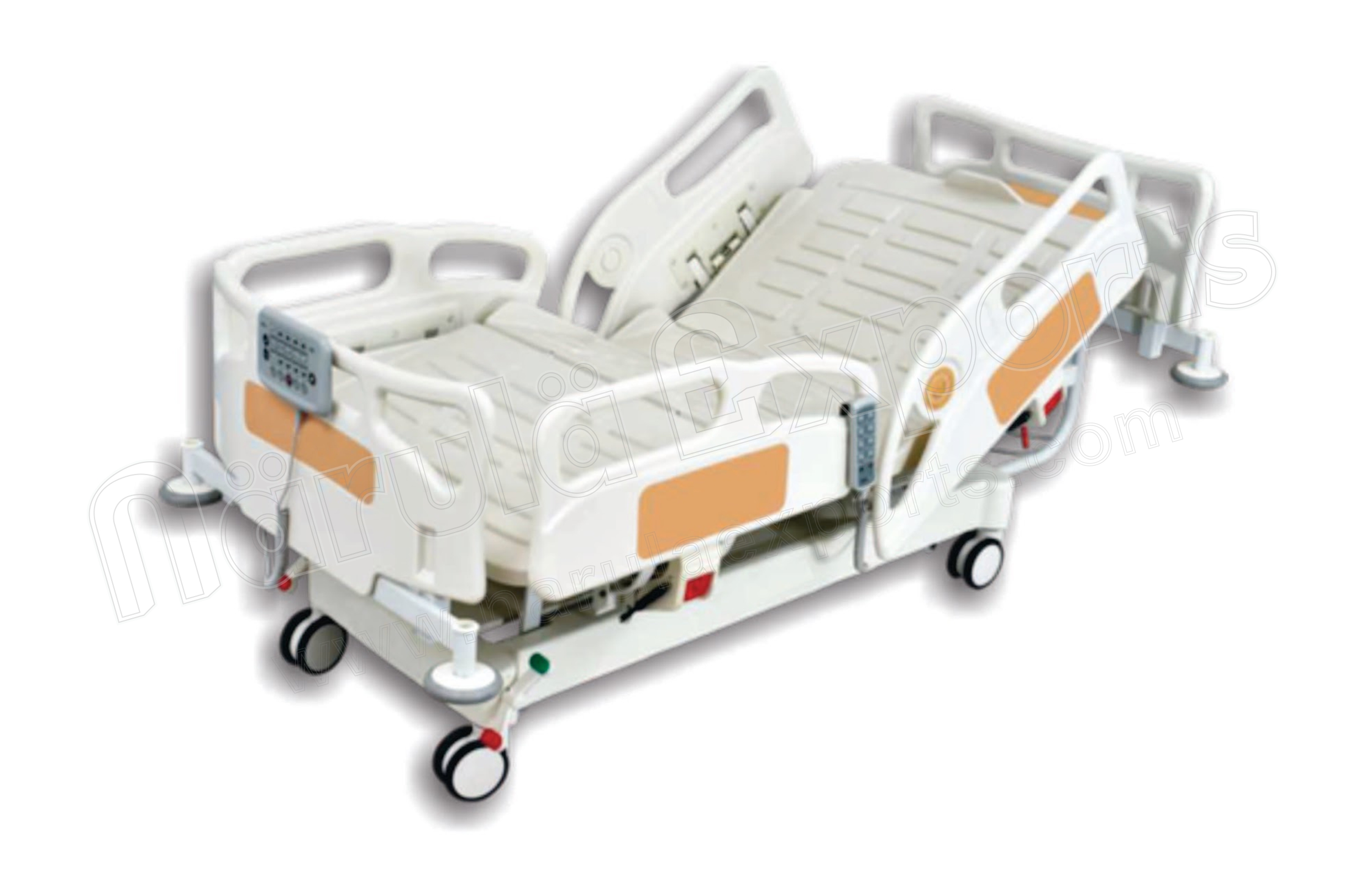

The ICU Elite 5-Function Bed by Narula Exports is an advanced electric hospital bed designed for critical care. It features Four Linear Motors for precise positioning, Trendelenburg/Reverse Trendelenburg adjustments, and a four-section mattress platform for enhanced patient support. Equipped with ABS side rails with an integrated control panel, manual & electric CPR function, and an emergency stop button, it ensures patient safety. The built-in weighing system, night light, battery backup, and central locking castors make it a reliable choice for hospitals and ICUs.
Features
- Motors : Four linear motors for precise positioning.
- Framework : Made of anti-corrosive epoxy powder-coated mild steel.
- Mattress Platform : Four-section ABS mattress platform.
- Bed Functions : Electric 5-function ICU bed with hi-low, back-rest, knee-rest, and Trendelenburg / Reverse Trendelenburg adjustment via handheld remote control.
- Side Rails : Easy lockable fold-away ABS side rails.
- Head & Foot Panels : Detachable ABS head and foot panels.
- Wall Protection : Wall bumper wheel to protect the bed and walls.
- CPR Function : Electric and manual CPR.
- Fowler Position : Supports optimal patient positioning.
- Cardiac Chair Position : Single push-button activation.
- Emergency Head Down Position : Single push-button activation.
- Nurse Control Panel : Equipped with a backlight system for ease of use.
- Handheld Remote Control : Allows convenient bed adjustments.
- Auto Regression : Enhances patient comfort by reducing pressure points.
- Urine Bag Holder : Convenient attachment for patient use.
- Angle Indicator : Displays back-rest and Trendelenburg position angles.
- Battery Backup : Ensures uninterrupted operation during power failure.
- IV Pole : Provided with provisions on all four locations.
- Smooth Mobility : Mounted on four castors with a central locking system.
Technical Specifications
- Overall Dimensions (L x W x H) : 2140mm x 1060mm x (510-810)mm.
- Mattress Platform (L x W) : 1925mm x 880mm.
- Safe Working Load : 250 kg.
- Height Adjustment : 510-810mm.
- Back-Rest Adjustment : 0-65° (±10°)
- Knee-Rest Adjustment : 0-40° (±10°)
- Reverse Trendelenburg : 0-15°
- Trendelenburg : 0-15°
- Power Supply : 220-240 VAC, 50/60 Hz.
- Castors : 4 swivel castors (125 mm diameter) with a central locking system.
Optional Accessories
- Four-Section Mattress with 4″ thick PU foam of 40 density.
- Height-Adjustable Stainless Steel IV Pole.
- Bed Extension.
- Linen Holder.
- Battery Backup.
- Under-Bed Light.
- Oxygen Cylinder Holder for Small Cylinder.
- X-ray Permeable Backrest with Cassette Holder.
