    Intelli Care 5-Function ICU Bed
    Intelli Care 5-Function ICU Bed
    arrow
    arrow
    Add To Cart Download

    50-0115

    Description

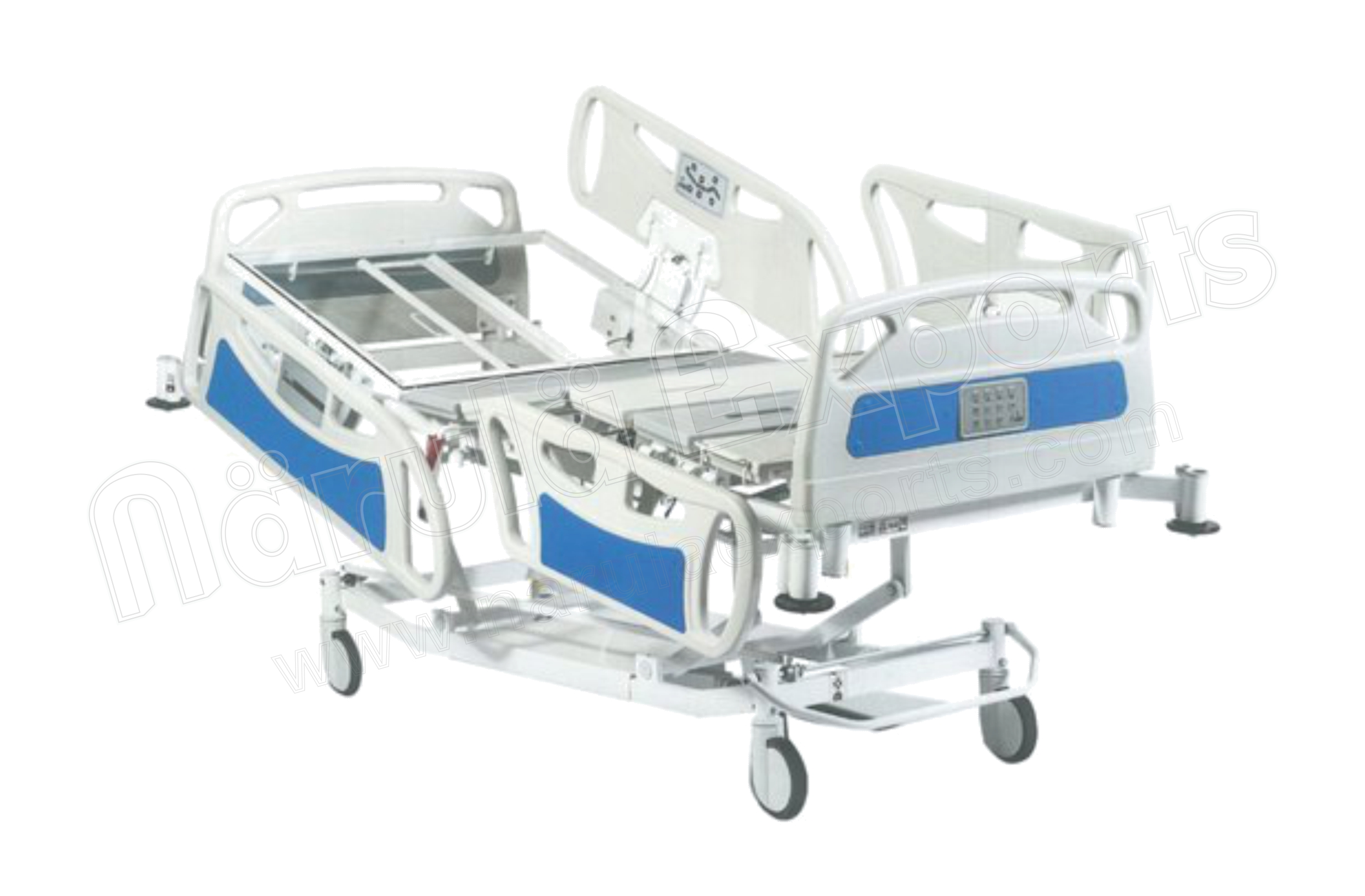

    The IntelliCare 5-Function ICU Bed by Narula Exports is an advanced electric hospital bed designed for intensive care. Featuring four linear motors, Trendelenburg/Reverse Trendelenburg adjustments, and a four-section mattress platform, it ensures patient comfort and precise positioning. Equipped with ABS side rails with integrated control panels, a manual & electric CPR function, and a nurse control panel on the footboard, it enhances safety and usability. The X-ray translucent backrest with a cassette holder, central locking castor system, and battery backup make it an ideal choice for modern healthcare facilities.

    Features

    • Motors : Four linear motors for precise positioning.
    • Framework : Made of anti-corrosive epoxy powder-coated mild steel.
    • Mattress Platform : Four-section mattress platform.
    • Bed Functions : Electric 5-function ICU bed with hi-low, back-rest, knee-rest, and Trendelenburg /Reverse Trendelenburg adjustment through the control panel.
    • Side Rails : ABS side rails equipped with an integrated control panel on both sides.
    • Head & Foot Panels : Detachable plastic head and foot panels.
    • Wall Protection : Wall bumper wheel to protect the bed and walls.
    • CPR Function : Electric and manual CPR.
    • X-ray Translucent Backrest : Equipped with a cassette holder.
    • Nurse Control Panel : Integrated on the footboard.
    • Urine Bag Holder : Convenient attachment for patient use.
    • Battery Backup : Ensures uninterrupted operation during power failure.
    • IV Pole Provision : Located at all four positions.
    • Smooth Mobility : Mounted on four castors with a central locking system.

    Technical Specifications

    • Overall Dimensions (L x W x H) : 2300mm x 1100mm.
    • Mattress Platform (L x W) : 2000mm x 900mm.
    • Safe Working Load : 250kg.
    • Height Adjustment : 460-780mm.
    • Back-Rest Adjustment : 0-80° (±10°)
    • Knee-Rest Adjustment : 0-35° (±10°)
    • Reverse Trendelenburg : 0-15°
    • Trendelenburg : 0-15°
    • Power Supply : 220-240 VAC, 50/60 Hz
    • Castors : 4 swivel castors (150 mm diameter) with a central locking system.

    Optional Accessories

    • Four-section mattress with 100 mm thick PU foam of 40 density.
    • Height-adjustable stainless steel IV pole.
    • Traction holder.
    • Chest bottle holder.
    • Monkey bar holder.
