50-0153
Description

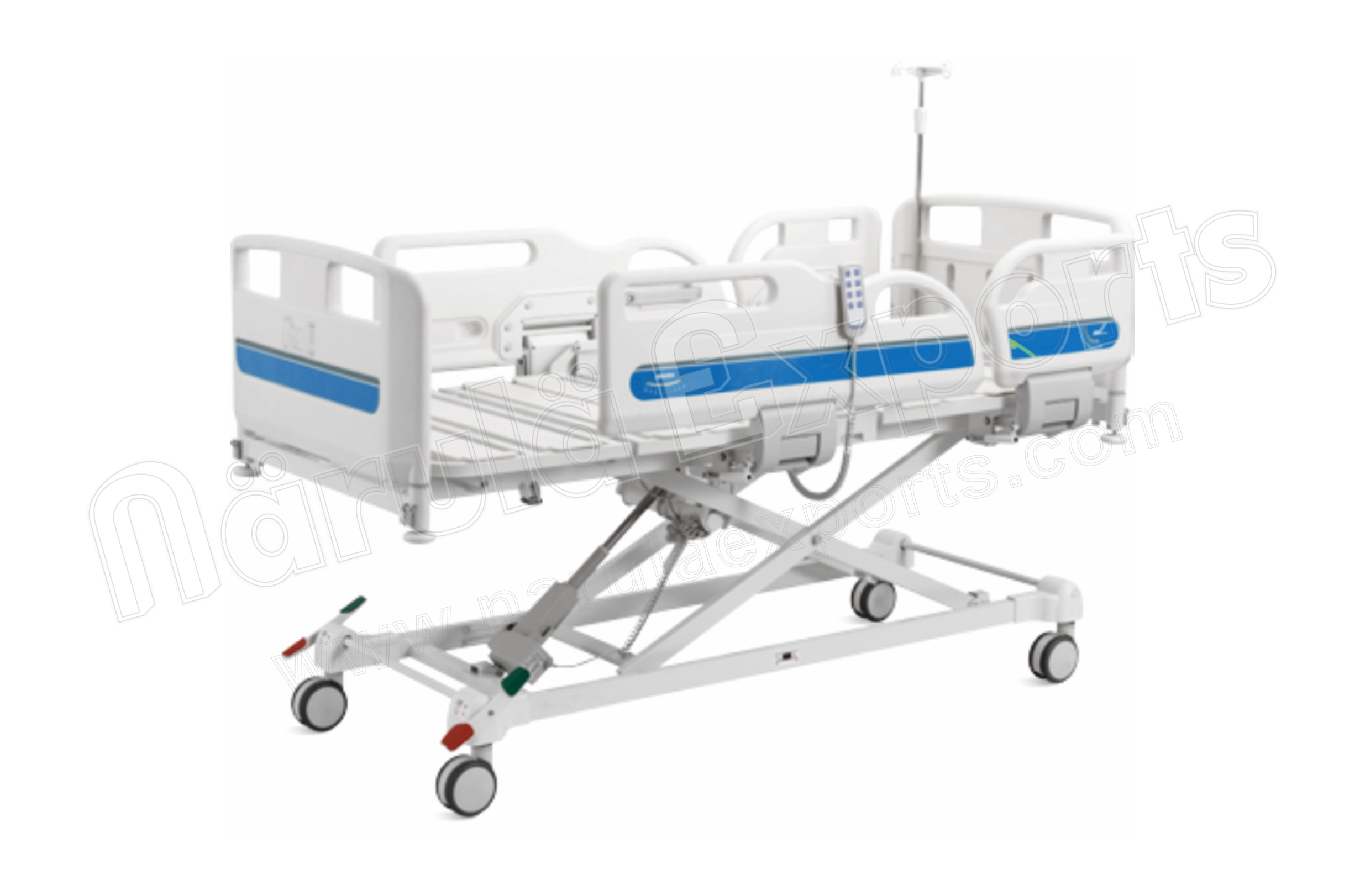

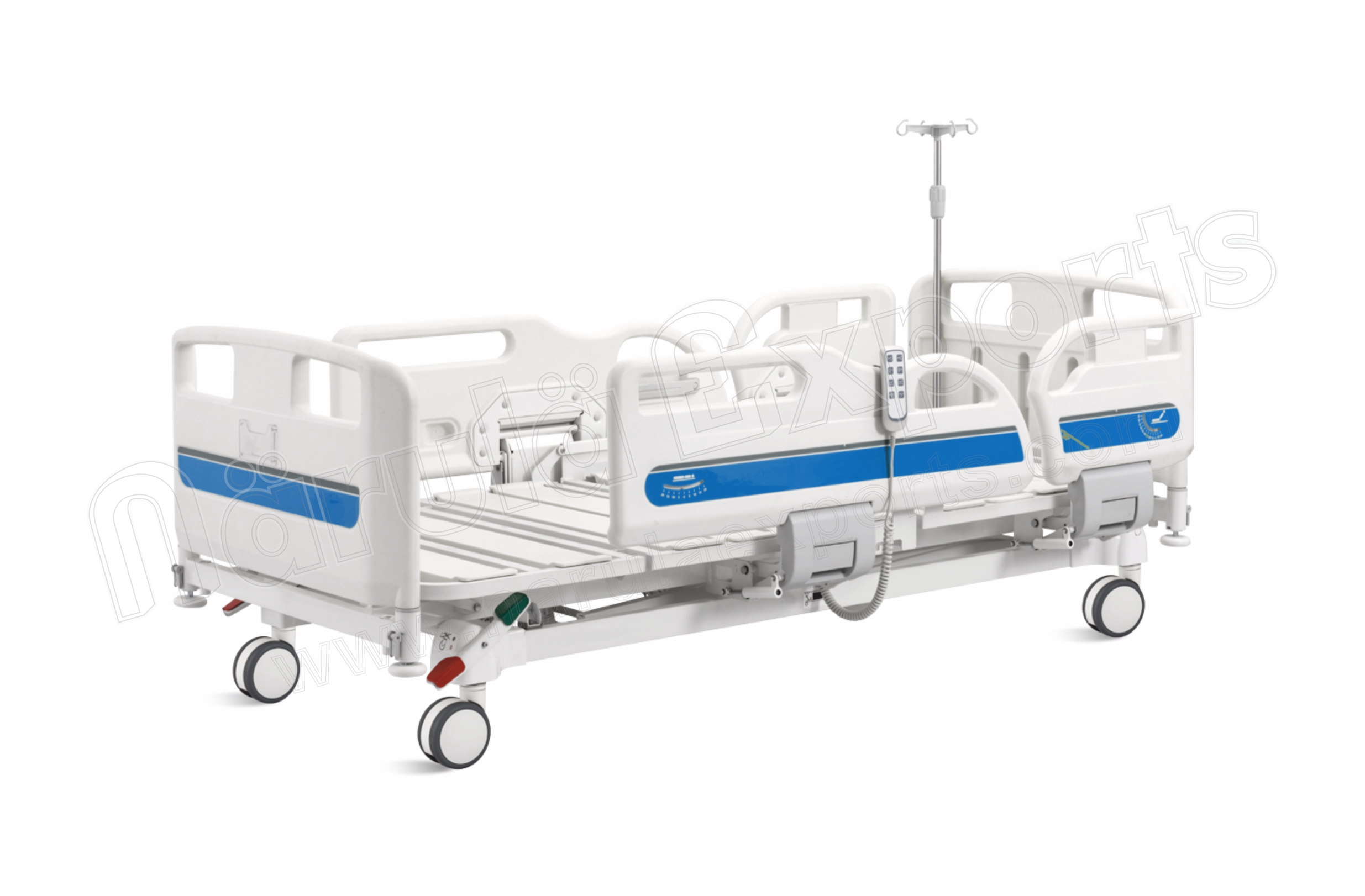

The Prime 3-Function ICU Bed by Narula Exports is a high-quality electric hospital bed designed for patient comfort and efficient caregiving. Featuring three linear motors, it offers backrest, knee-rest, and height adjustments through a handheld remote control. The 4-section PP mattress platform, auto-regression feature, and angle indicator enhance patient positioning and pressure relief. Equipped with easily lockable ABS side rails, plastic sockets for phone or glasses, and detachable ABS head and foot panels, it ensures convenience. Swivel castors with brakes on 2 diagonally positioned castors provide smooth mobility and stability, making it an excellent choice for ICUs and healthcare facilities.
Features

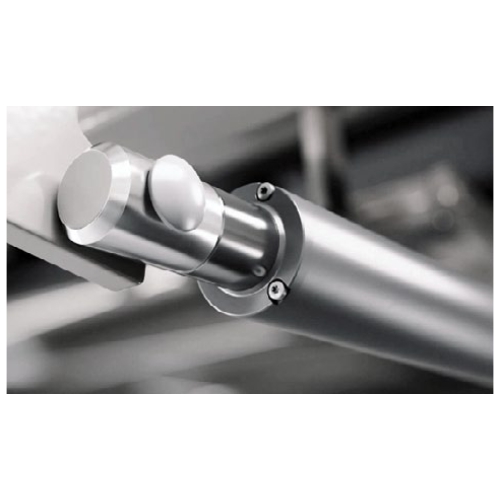

- Motors : 3 linear motors for precise positioning.
- Framework : Made of anti-corrosive epoxy powder-coated tubular mild steel.
- Mattress Platform : 4-section PP mattress platform.

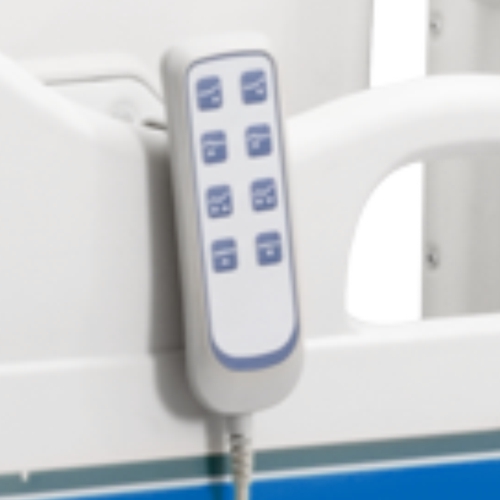

- Bed Functions : Electric 3-function ICU bed with back-rest, knee-rest, and height adjustment through the handheld remote control.
- Side Rails : Easily lockable foldaway ABS side rails.

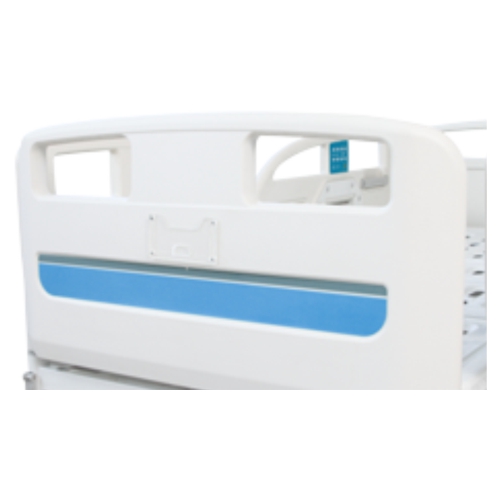

- Head & Foot Panels : Detachable ABS head and foot panels.

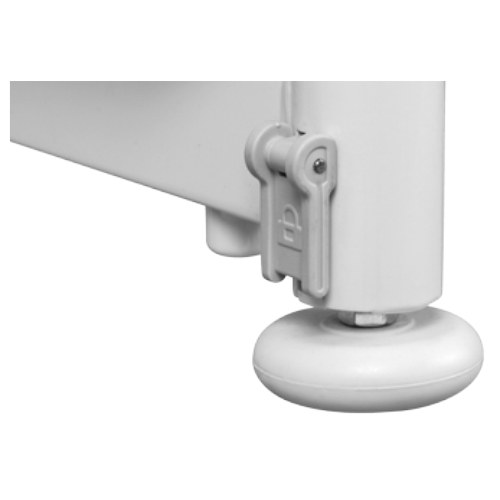

- Wall Protection : Wall bumper wheel to protect the bed and walls.

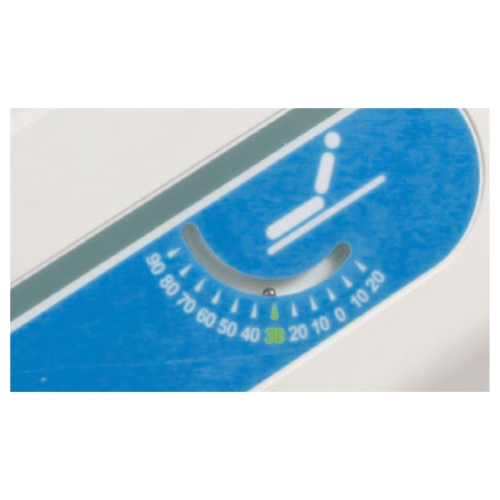

- Angle Indicator : Angle indicator for backrest and Trendelenburg position.

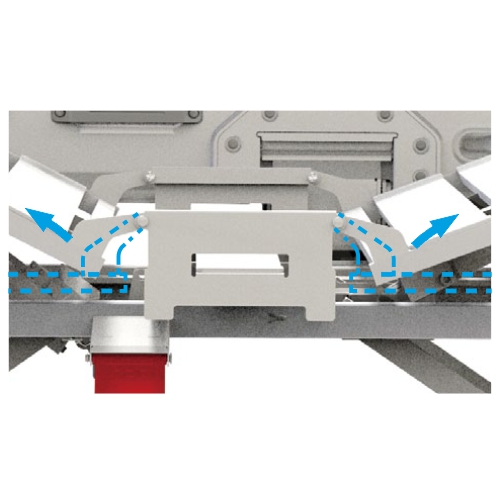

- Auto Regression : Enhances patient comfort and pressure relief.

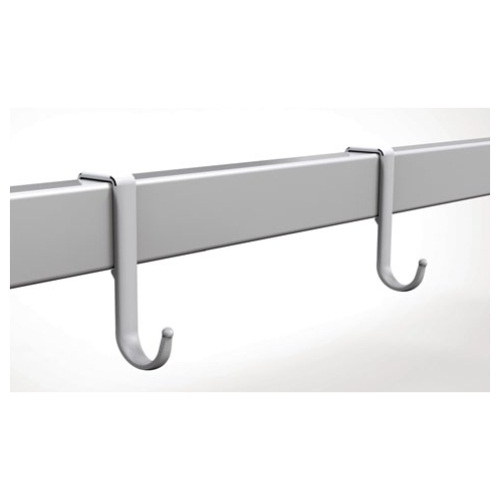

- Urine Bag Holder : Convenient attachment for patient use.
- Mattress Stopper : ABS mattress stopper.
- Side Rail Accessories : Plastic socket on side rails for phone or glasses.

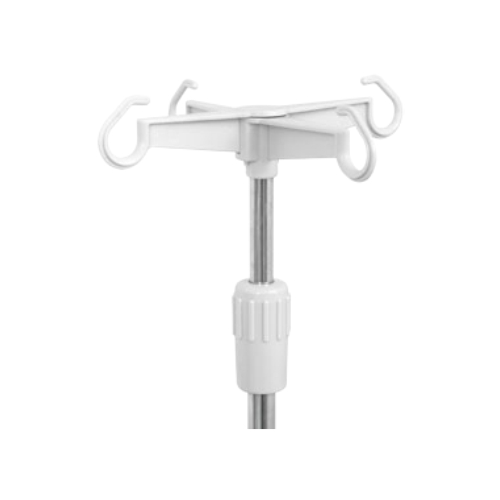

- IV Pole Provision : IV pole along with provision of IV pole on all 4 locations.
- Smooth Mobility : Mounted on 4 Swivel castors
Technical Specifications
- Overall Dimensions (L x W x H) : 2130mm x 1050mm x (360-800)mm.
- Mattress Platform (L x W) : 1925mm x 880mm.
- Safe Working Load : 250kg.
- Back-Rest Adjustment : 0-75° (±10°)
- Knee-Rest Adjustment : 0-35° (±10°)
- Auto-Regression : 100+60 mm.
- Angle Indicator : 0-90°
- Position Line : 30°
- Power Supply : 220-240 VAC, 50/60 Hz

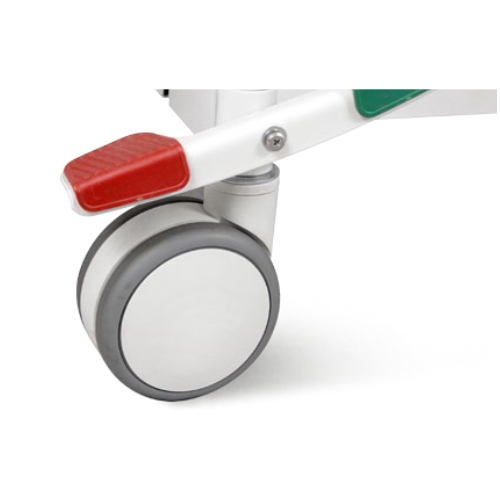

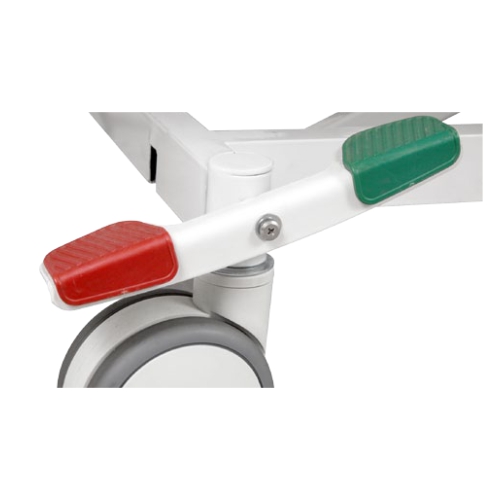

- Castors : 4 swivel castors (125 mm diameter), with brakes on 2 diagonally positioned castors.
Optional Accessories
- Weighing system.
- Bed extension 20 cm.
- Back-up battery.
- Nurse control panel.
- Emergency stop button.
- Cardiac chair position.
- Directional wheels function.
- 5th and 6th extra side rails for full protection.
- Monkey pole.
- Balkan frame.
- Linen holder.
- One-button patient mobilization position.
- One-button nursing position.
- Lowest position indicator.
