50-0111
Description

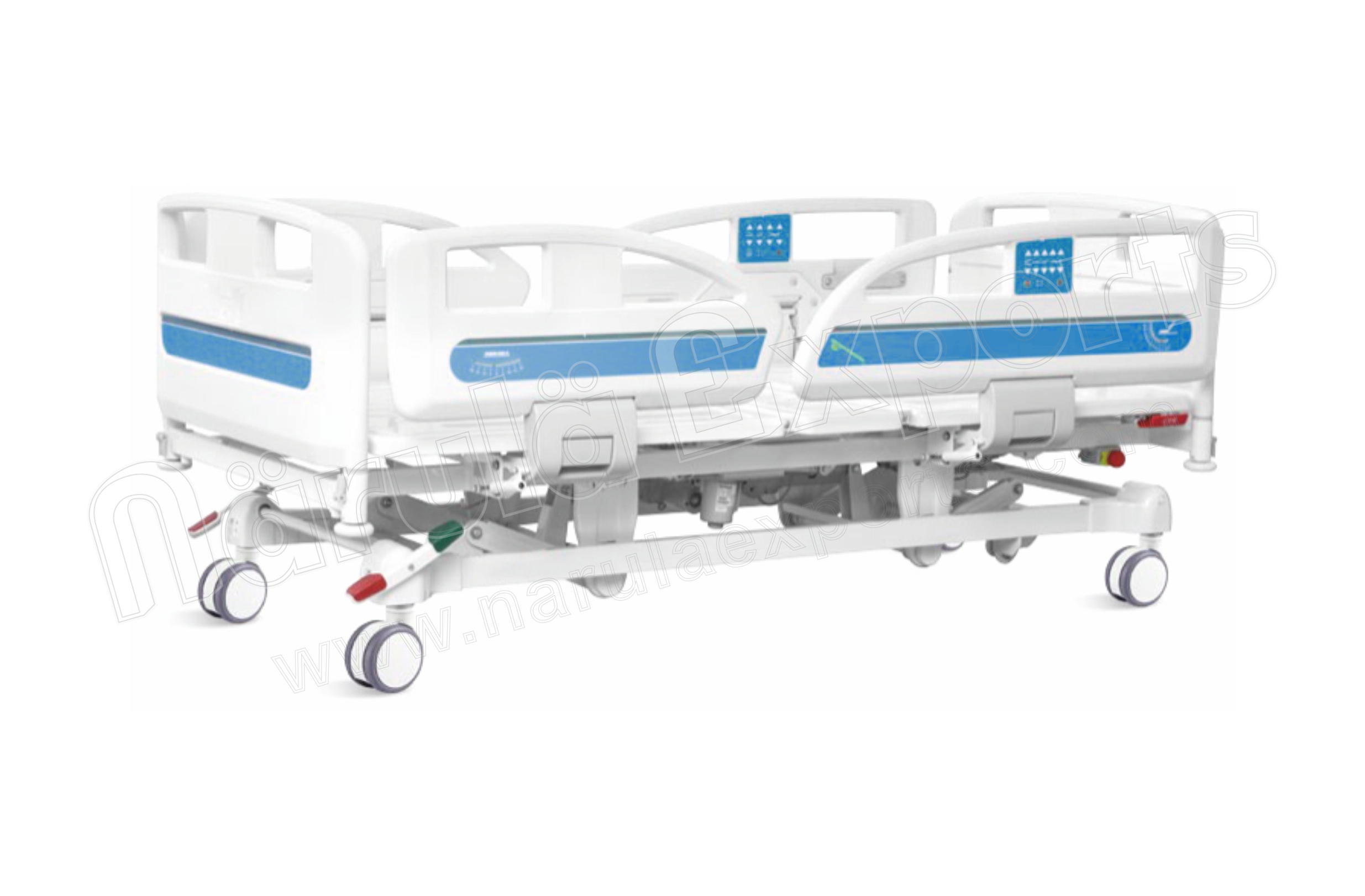

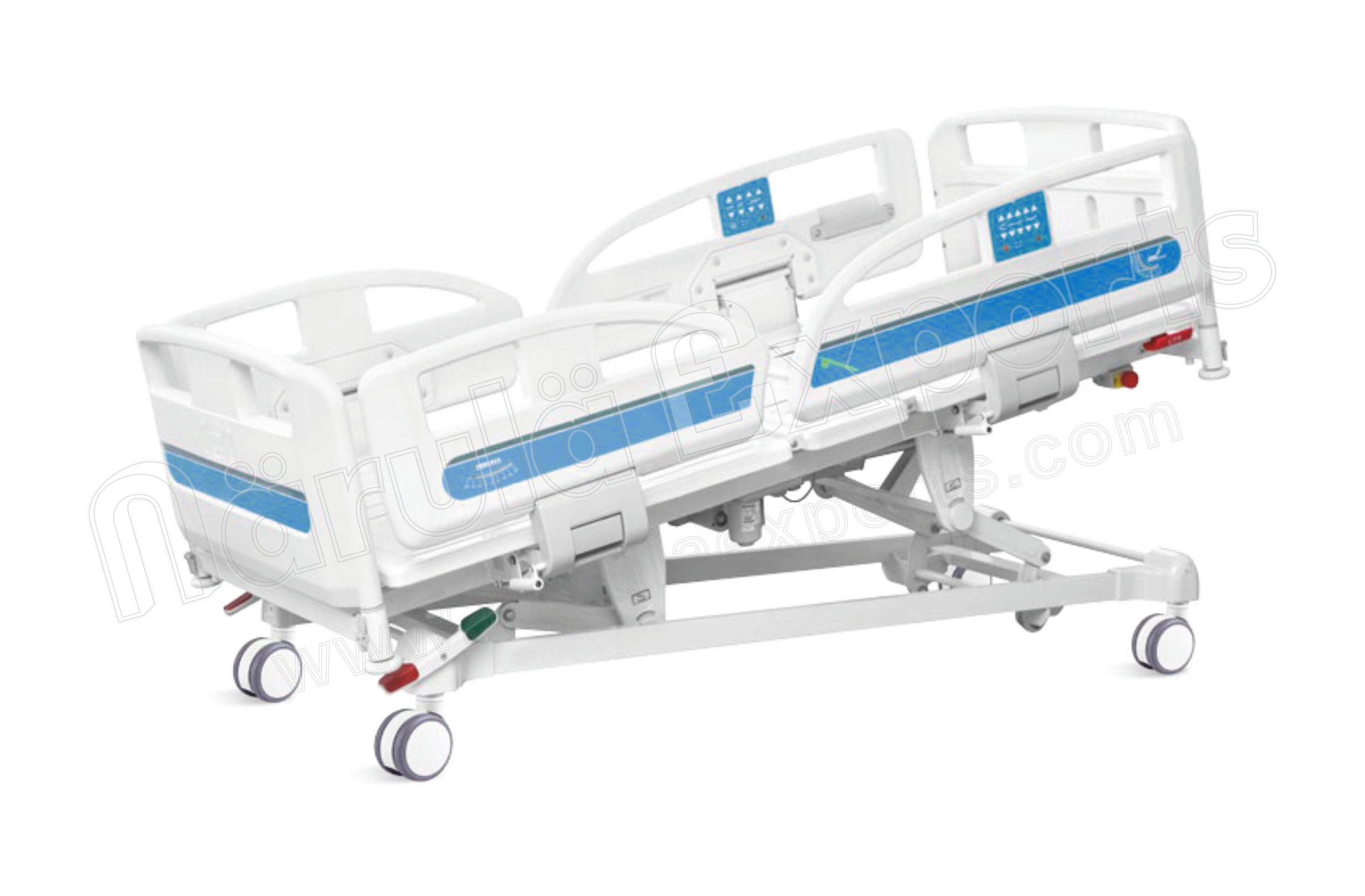

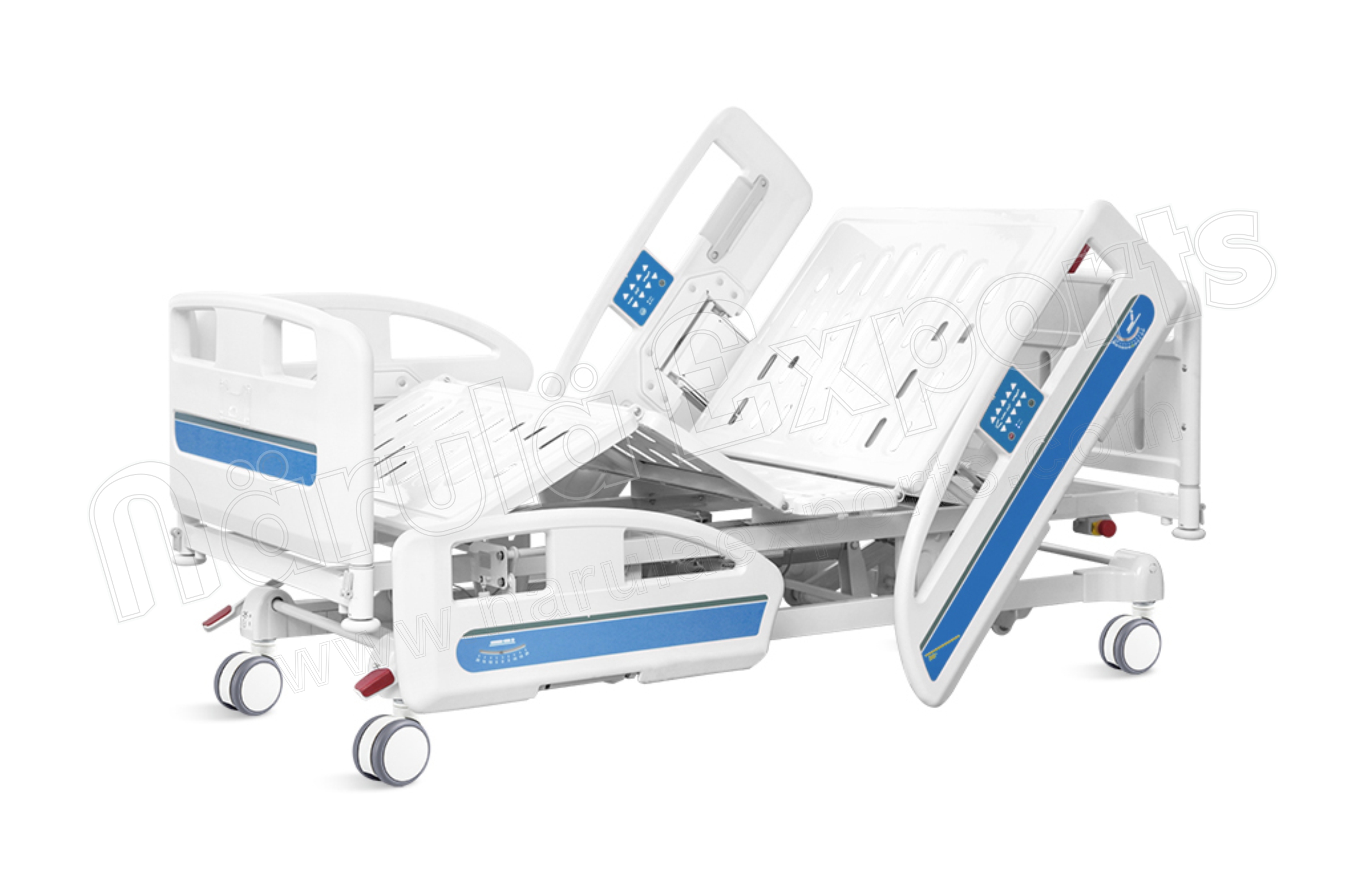

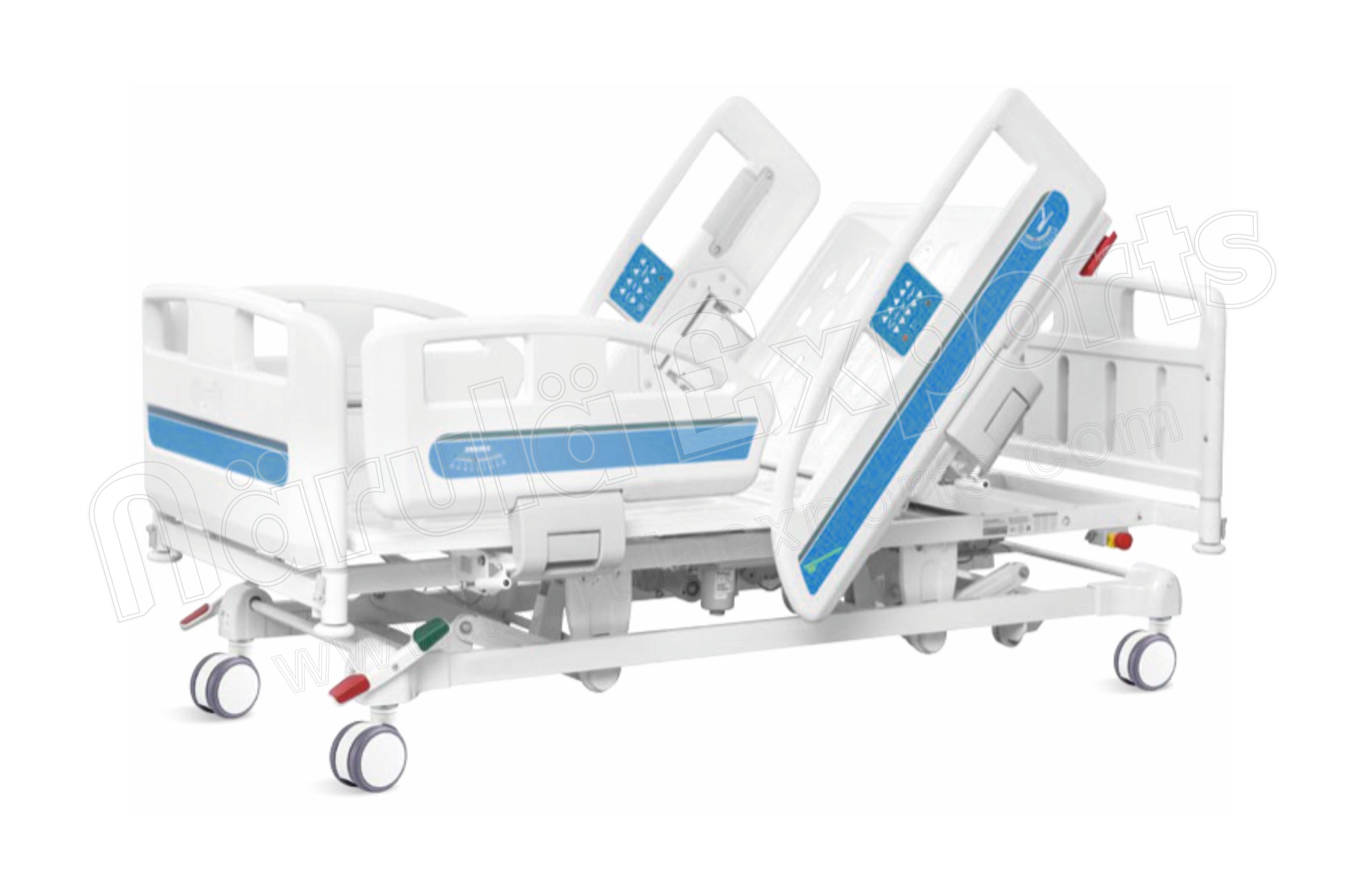

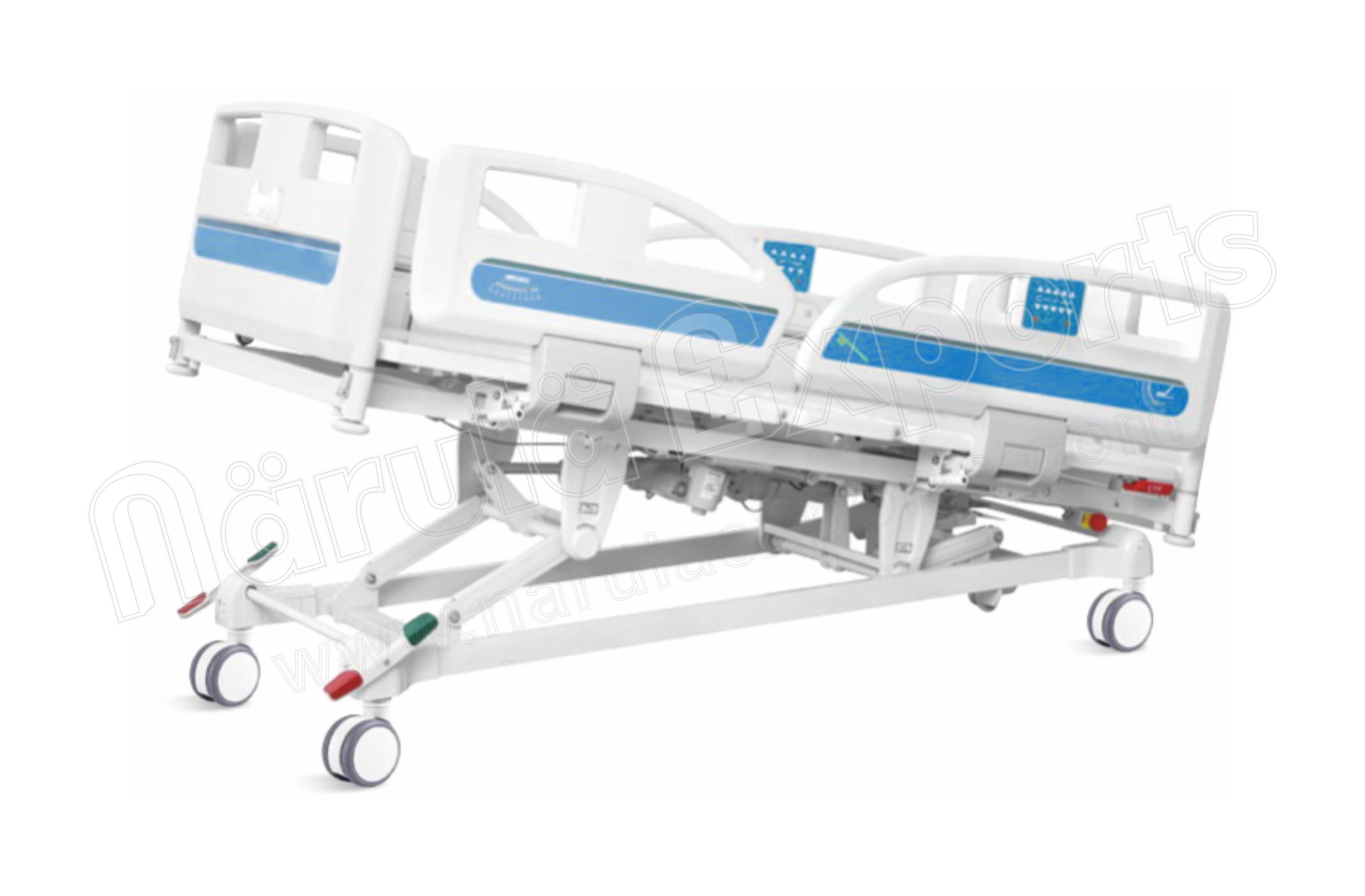

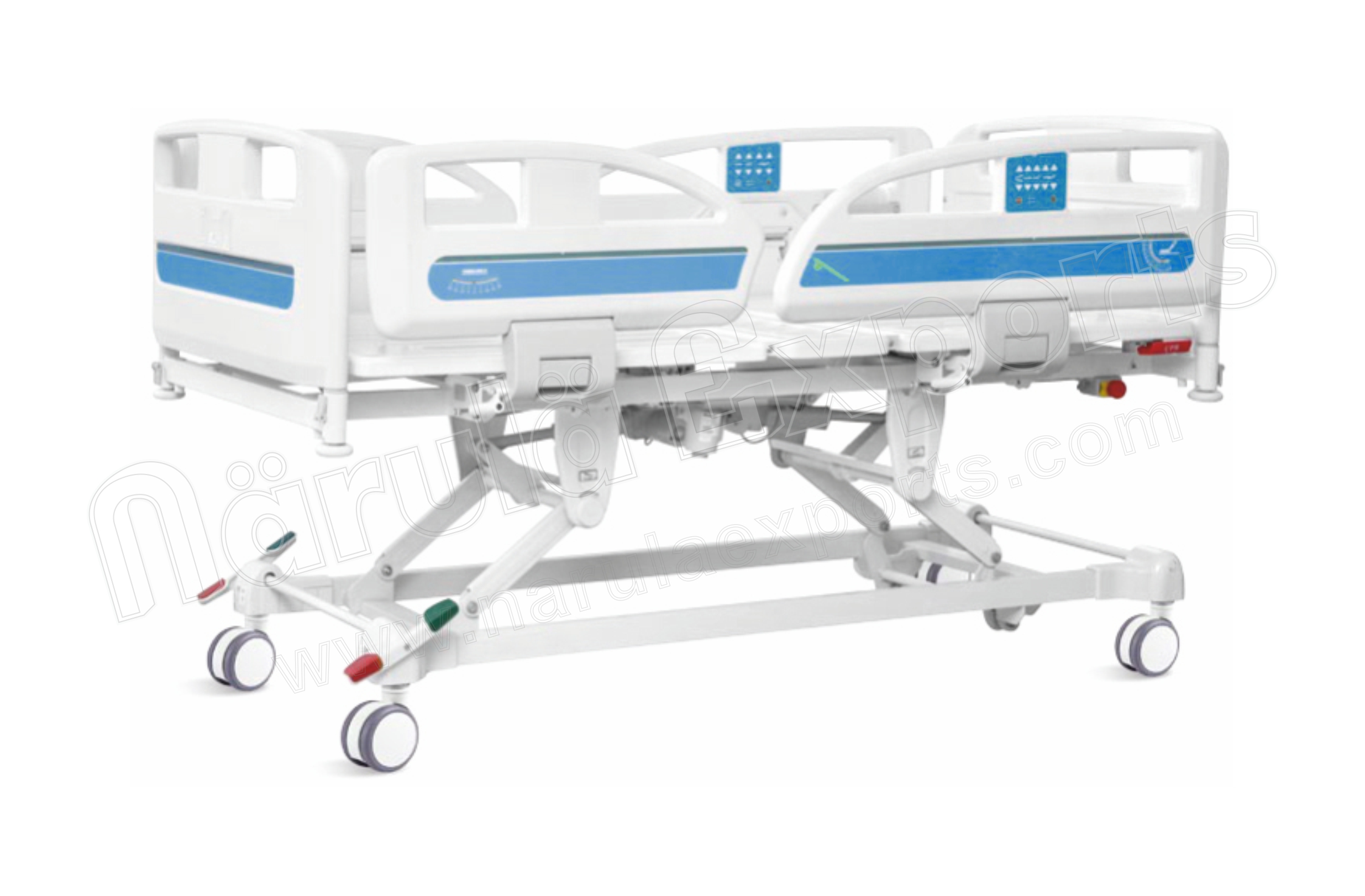

The ICU Elite 5-Function Bed by Narula Exports is an advanced electric hospital bed designed for critical care. It features Four Linear Motors for precise positioning, Trendelenburg/Reverse Trendelenburg adjustments, and a four-section mattress platform for enhanced patient support. Equipped with ABS side rails with an integrated control panel, manual & electric CPR function, and an emergency stop button, it ensures patient safety. The built-in weighing system, night light, battery backup, and central locking castors make it a reliable choice for hospitals and ICUs.
Features

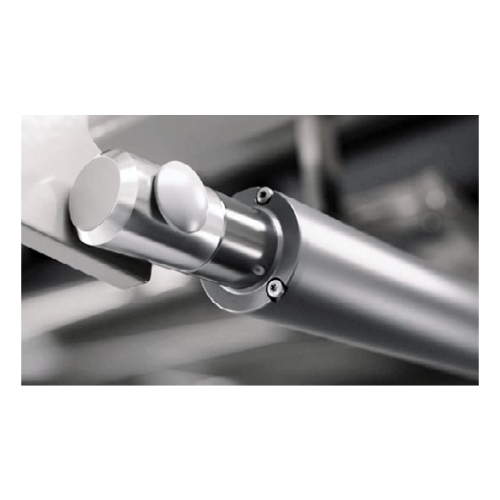

- Motors : Four linear motors for precise positioning.

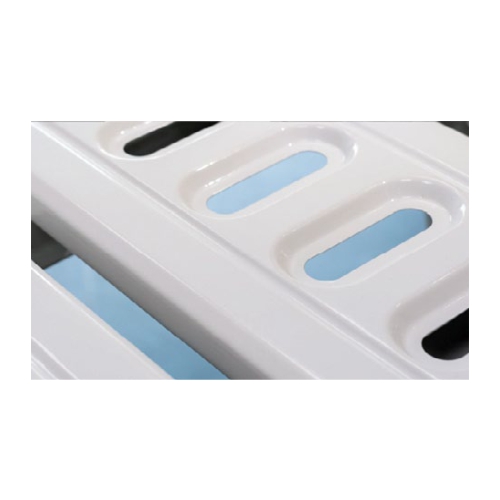

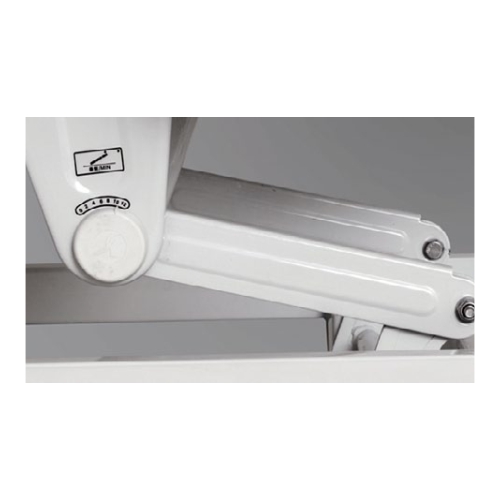

- Framework : Made of anti-corrosive epoxy powder-coated mild steel.

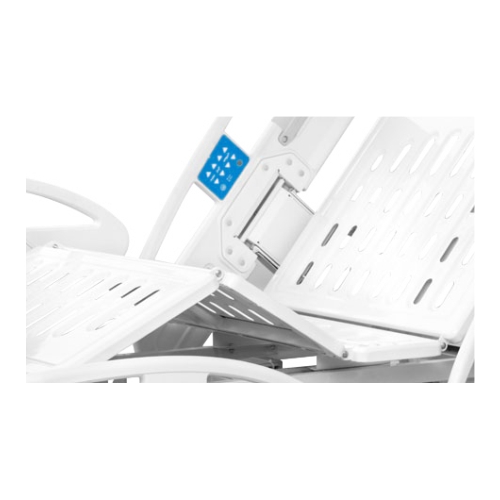

- Mattress Platform : Four-section mattress platform with a stamping-formed bed platform.
- Bed Functions : Electric 5-function ICU bed with hi-low, back-rest, knee-rest, and Trendelenburg/Reverse Trendelenburg adjustment via both handheld remote control and side rail control panel.

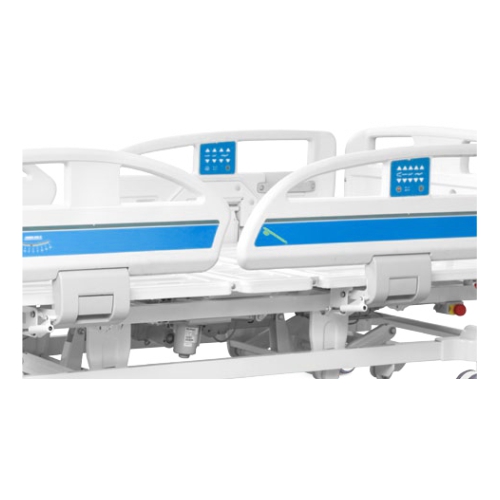

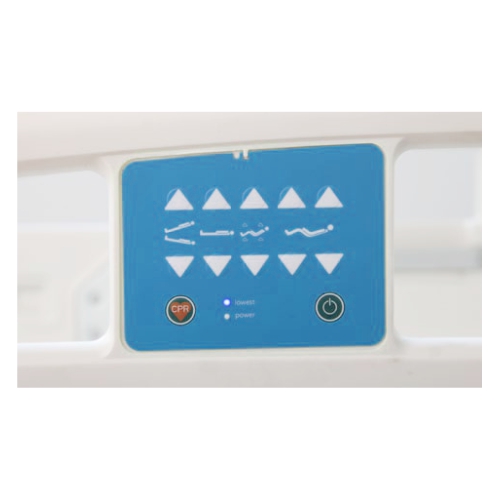

- Side Rails : ABS side rails equipped with an integrated control panel.

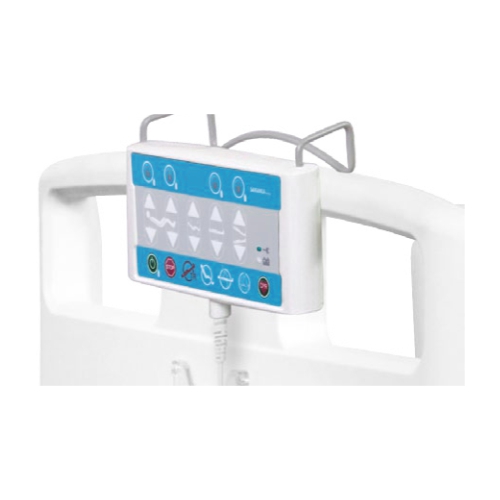

- Nurse Control Panel : Hook-type design for easy access.

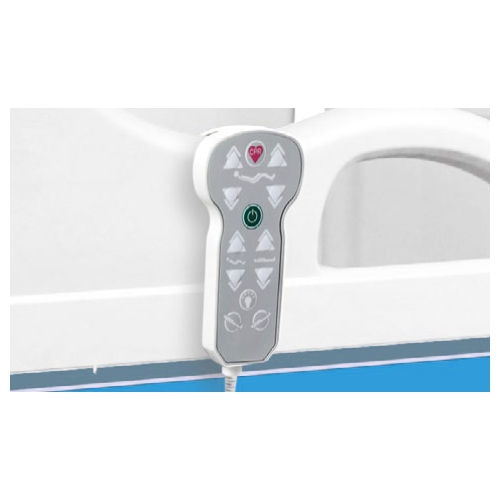

- Handheld Remote Controller : Allows convenient bed adjustments.

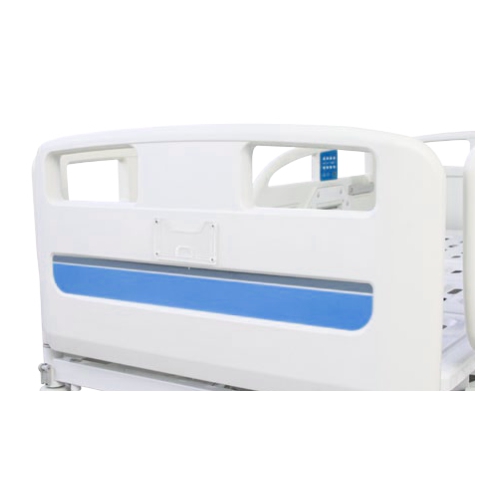

- Head & Foot Panels : Detachable ABS head and foot panels.
- Wall Protection : Wall bumper wheel to protect the bed and walls.

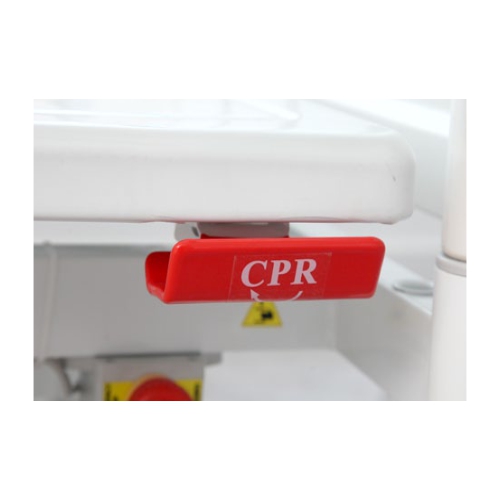

- CPR Function : Electric and manual CPR.

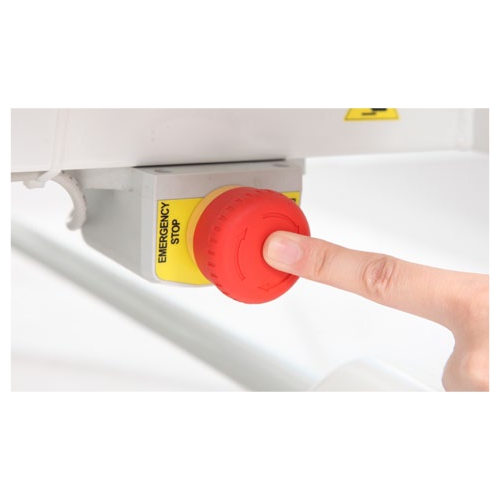

- Emergency Stop Button : Ensures safety during operation.
- Bed Extension : Adjustable length for patient accommodation.

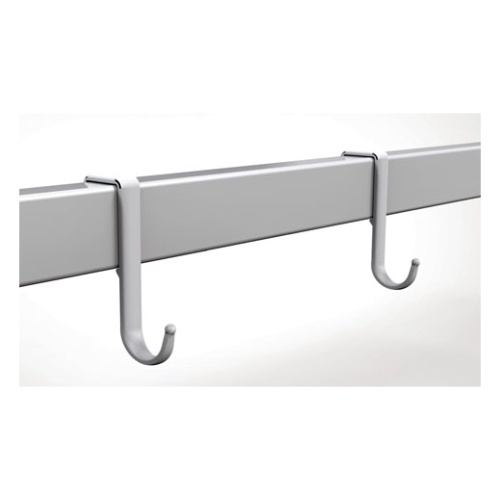

- Urine Bag Holder : Convenient attachment for patient use.

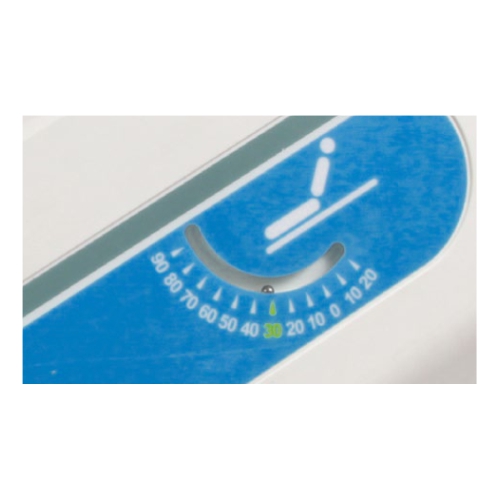

- Angle Indicator : Displays back-rest and Trendelenburg position angles.

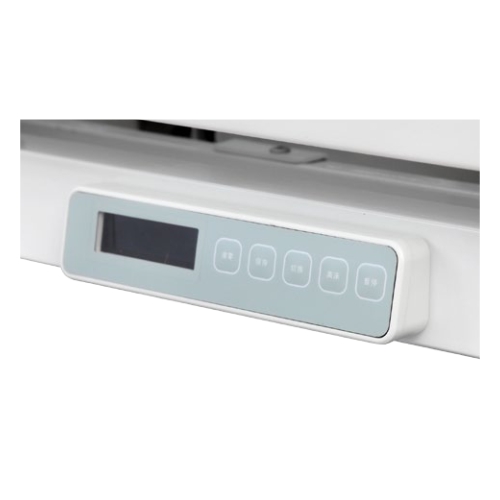

- Weighing System : Integrated for precise patient weight measurement.

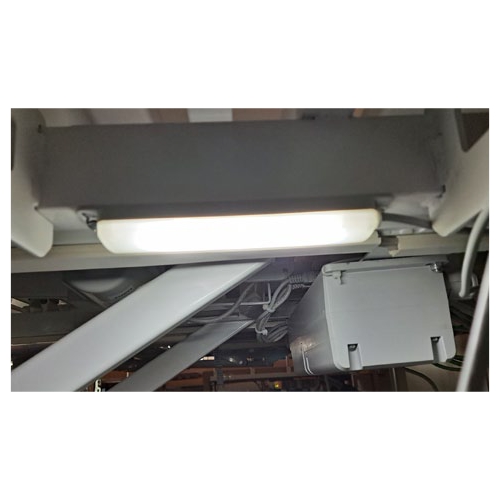

- Night Light : Under-bed illumination for nighttime visibility.
- Battery Backup : Ensures uninterrupted operation during power failure.

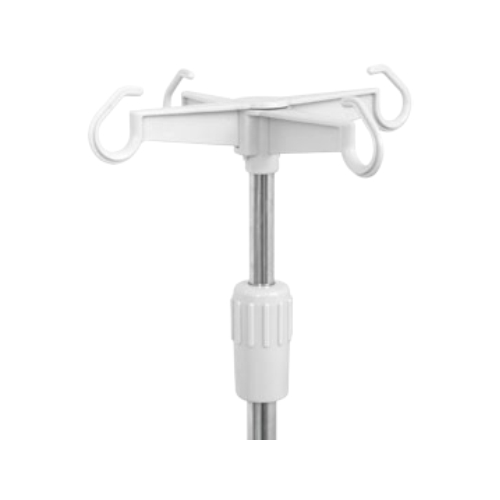

- IV Pole : Provided with provisions on all four locations.

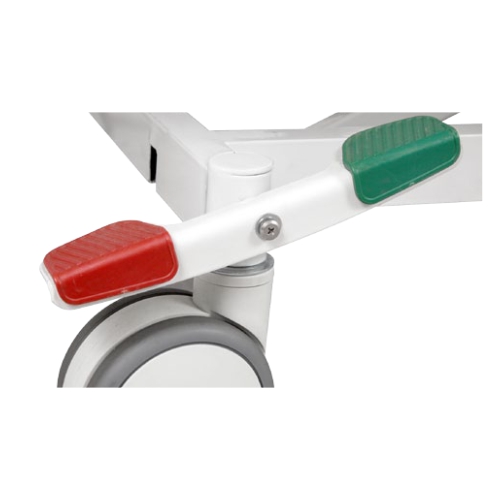

- Smooth Mobility : Mounted on four castors with a central locking system.
Technical Specifications
- Overall Dimensions (L x W x H) : 2140mm x 1060mm x (480-770)mm
- Mattress Platform (L x W) : 1925mm x 880mm
- Safe Working Load : 250kg
- Height Adjustment : 480-770mm
- Back-Rest Adjustment : 0-75° (±10°)
- Knee-Rest Adjustment : 0-35° (±10°)
- Reverse Trendelenburg : 0-12°
- Trendelenburg : 0-12°
- Angle Indicator : 0-90°
- Position Line : 30°
- Power Supply : 220-240 VAC, 50/60 Hz

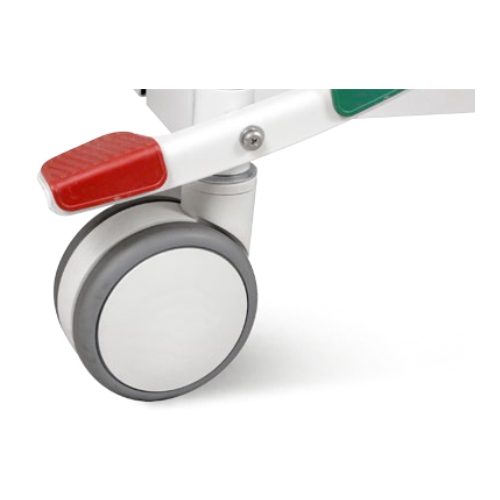

- Castors : 4 swivel castors (150 mm diameter) with a central locking system
Optional Accessories
- Hand Controller.
- Nurse Control Panel.
- Cardiac Chair Position.
- Bed Extension (20 cm).
- Backup Battery.
- Directional Wheels Function.
- ABS Mattress Stopper.
- Monkey Pole.
- Balkan Frame.
- Linen Holder.
