50-0101
Description
Narula Exports 7-Position advanced ICU Electric Bed is engineered for advanced patient care, featuring seven adjustable positions powered by six linear motors for precise movement. Its X-ray translucent four-section mattress platform, ABS side rails with an integrated touchscreen control panel, and auto-regression enhance patient comfort and pressure relief. Designed for critical care, it includes a cardiac chair position, emergency CPR function, central locking castor system, and battery backup for uninterrupted operation, ensuring superior safety, mobility and convenience in ICU settings.
Features
- Motors: Six linear motors for precise positioning.

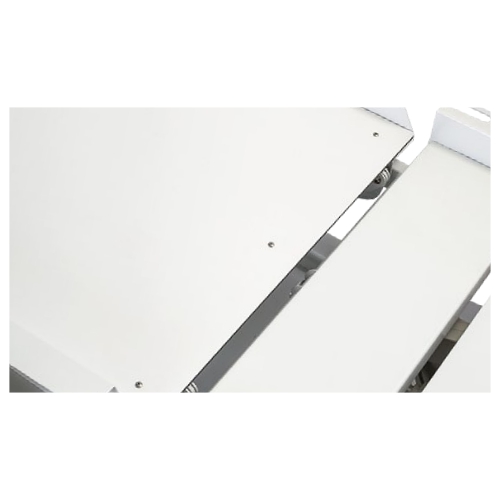

- Framework: Made of anti-corrosive epoxy powder-coated mild steel.
- Mattress Platform: Four-section, X-ray translucent mattress platform.

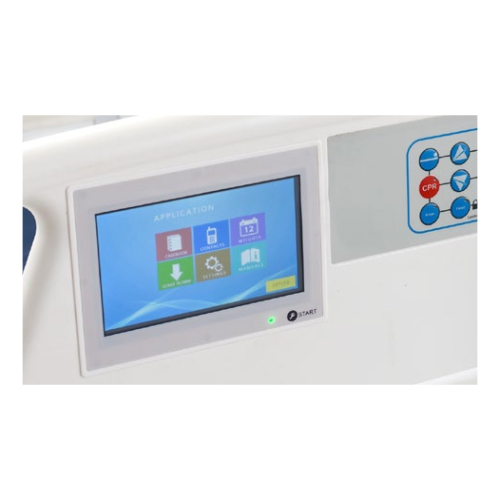

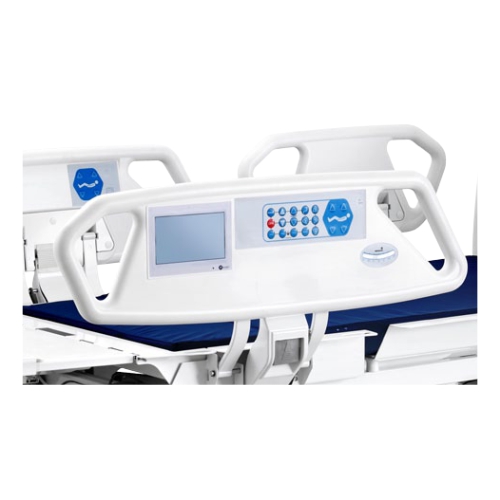

- Side Rails: ABS side rails with an integrated touchscreen control panel.
- Head & Foot Panels: Detachable ABS head and foot panels.

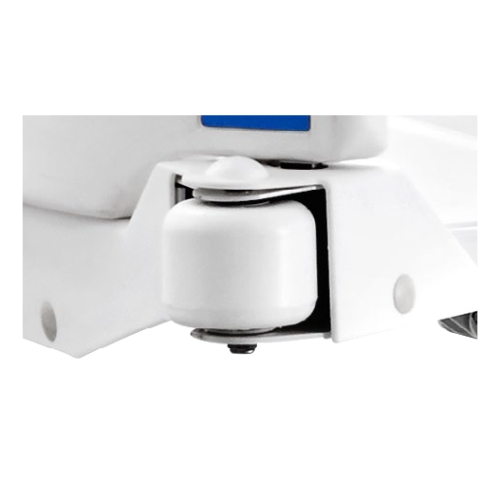

- Wall Protection: Wall bumper wheel to protect the bed and walls.
- Emergency Transfer: Bed push handle for emergency movement.
- CPR Function: Electric and manual CPR.
- Auto Regression: Enhances patient comfort and pressure relief.
- Bed Extension: Adjustable length for patient accommodation.
- Cardiac Chair Position: Facilitates cardiac support positioning.
- Urine Bag Holder: Conveniently attached for patient use.
- Angle Indicator: Displays back-rest and Trendelenburg position angles.
- Night Light: Under-bed illumination for nighttime visibility.

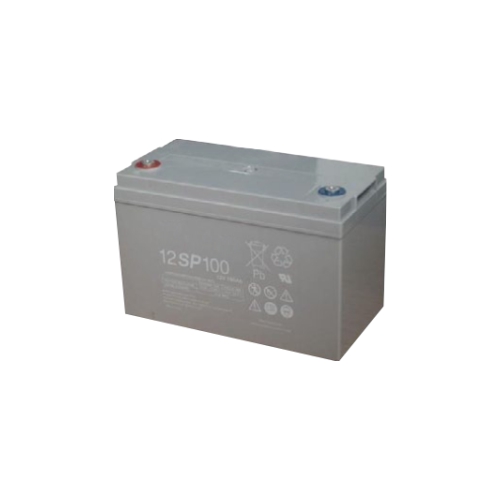

- Battery Backup: Ensures functionality during power failures.
- Directional Wheel Pedal: Enhances mobility control.
- IV Pole: Provided with four location provisions for flexibility.

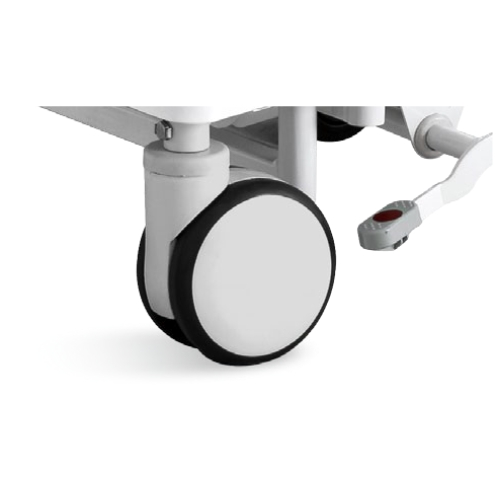

- Castors: Mounted on four castors with a central locking system.
Technical Specifications
- Overall Dimensions (LxWxH): (2040-2240) mm x 1020 mm x (500-950) mm.
- Mattress Platform (LxW): (1820-2020) mm x 820 mm.
- Safe Working Load: 250 kg.
- Back-Rest Adjustment: 0-75° (±10°).
- Knee-Rest Adjustment: 0-20° (±10°).
- Reverse Trendelenburg: 0-18°.
- Trendelenburg: 0-18°.
- Angle Indicator: 0-90°.
- Power Supply: 220-240 VAC, 50/60 Hz.
- Castors: 4 swivel castors (150 mm diameter) with a central locking system.
Optional Accessories
- Weighing System with LCD Screen.
- Data Storage System.

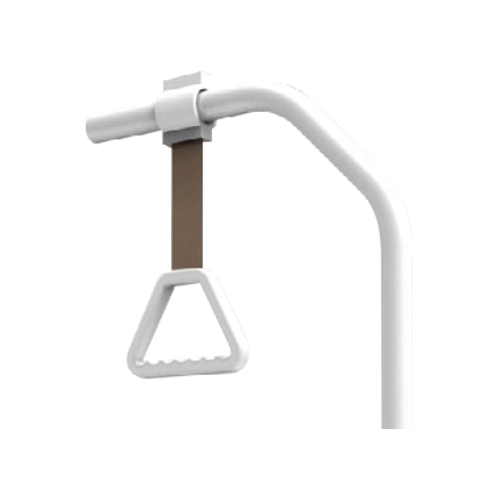

- Monkey Pole.
